Product description
ZOZOMOTORS Heavy Duty Fuel Pump Relay Kit

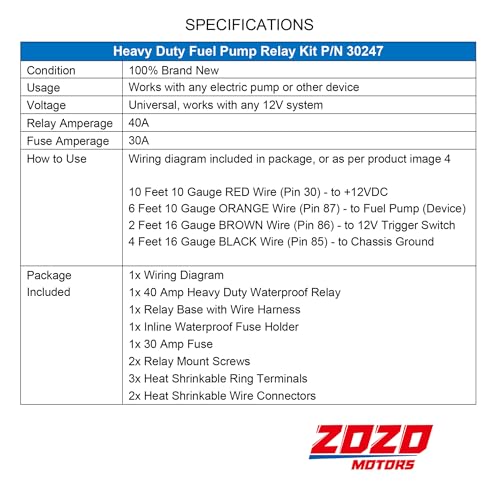

Specifications:

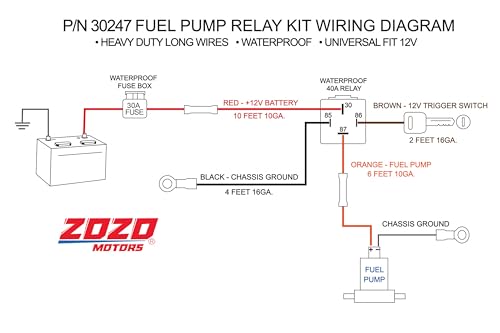

Condition: 100% Brand NewVoltage: Universal, works with any 12V systemRelay: 40AFuse: 30AHow to use: Wiring diagram included in package, or as per product image 4
10 Feet 10 Gauge RED Wire (Pin 30) – to +12VDC
6 Feet 10 Gauge ORANGE Wire (Pin 87) – to Fuel Pump (Device)
2 Feet 16 Gauge BROWN Wire (Pin 86) – to 12V Trigger Switch
4 Feet 16 Gauge BLACK Wire (Pin 85) – to Chassis Ground
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 468
4.5 out of 5 stars 324
Price
$35.99$35.99 $21.98$21.98
Wire Gauge
14 AWG 14 AWG
Package Included:
1x Wiring Diagram
1x 40 Amp Heavy Duty Waterproof Relay
1x Relay Base with Wire Harness

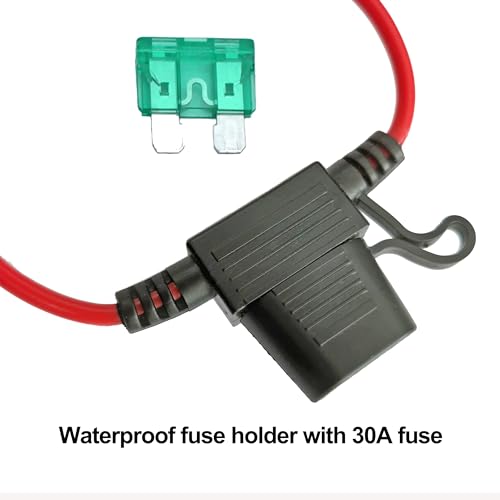

1x Inline Waterproof Fuse Holder
1x 30 Amp Fuse
2x Relay Mount Screws

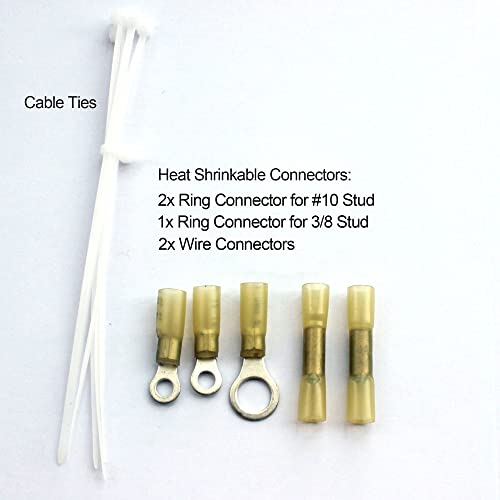

3x Heat Shrinkable Ring Terminals
2x Heat Shrinkable Wire Connectors
Product Dimensions : 9.84 x 9 x 1.2 inches; 13.76 ounces
Item model number : 30247
Date First Available : September 26, 2022
Manufacturer : ZOZOMOTORS Automotive
ASIN : B0BGHL8FKV
Best Sellers Rank: #33,091 in Automotive (See Top 100 in Automotive) #6 in Automotive Replacement Fuel Pump Relays
Customer Reviews: 4.5 4.5 out of 5 stars 208 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
HEAVY DUTY LONG WIRES. To safely, easily wire your pump directly to your battery, ensuring your high-pressure fuel pump is getting the voltage it needs. Designed specifically to prevent voltage drops at the fuel pump to maintain constant fuel pump pressure and to prevent fuel pump amperage overloads from damaging the vehicle’s electrical system
EASY TO INSTALL. All wires are clearly labeled and color-coded. And an easy-to-follow wiring diagram is included in the package. 10 feet 10 gauge RED wire (Pin 30) to +12V battery, 6 feet 10 gauge ORANGE wire (Pin 87) to fuel pump (Device), 2 feet 16 gauge BROWN wire (Pin 86) to 12V trigger switch, 4 feet 16 gauge BLACK wire (Pin 85) to chassis ground
UNIVERSAL FIT 12V SYSTEM. This will work on anything that is 12V activated that does not exceed a 40 amp continuous amperage draw

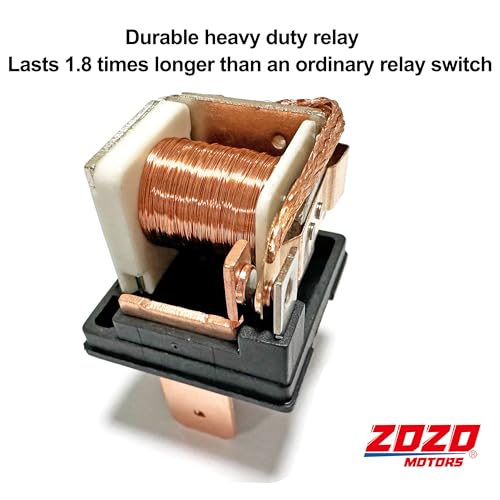

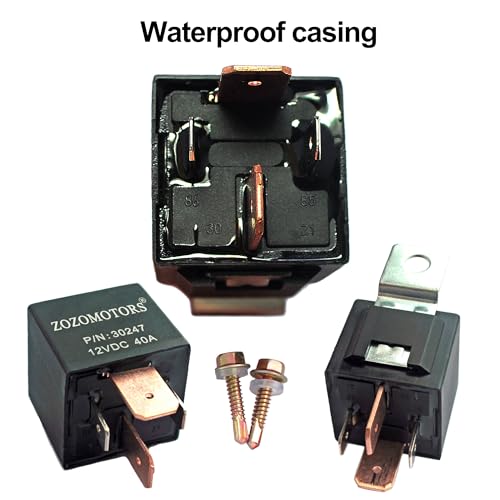

HEAVY DUTY & WATERPROOF. ZOZOMOTORS uses high quality & durable parts only. The heavy duty relay lasts 1.8 times longer than an ordinary relay switch. Waterproof casing 40 Amp relay and inline waterproof fuse box with 30 Amp fuse
THIS FUEL PUMP RELAY KIT INCLUDES EVERYTHING YOU NEED. Package includes easy to follow wiring diagram, 40 Amp heavy duty waterproof relay, relay base with wire harness, inline waterproof fuse holder, 30 Amp fuse, 2 relay mount screws, 3 heat shrinkable ring terminals, and 2 wire connectors
